编码开关-DM Series

Size:6.2x31.4mm
Surface Mount IC Type




产品类型:贴片IC型编码开关


规格参数
电气寿命: 2,000 operations per switch 24VDC 25 mA
额定值: 100mA ,50V DC
开关额定值: 25mA ,24V DC
接触电阻 : (a)50mΩ max.at initial
                                 (b)100mΩ max.after life test
绝缘电阻: 100MΩ min. at 500 V DC
耐压强度: 500V AC/ minute
电容: 5pF max
回路: SPST
操作温度范围:-20℃ to +85℃
存储温度范围: -40℃ to +85℃


使用材质
底座及外壳: UL94V-0 PPS High-Temp Thermoplastic
颜色: Black
操作柄: UL94V-0 Nylon High-Temp Thermoplastic (NDI)
           UL94V-0 Nylon High-Temp Thermoplastic
           (V-option only for DM(R)、DL(R)、DJ(R))
颜色: White
接点: Alloy Copper with gold plated
端子: Brass with gold plated
接点电镀: Gold plated over nickel
端子电镀: Gold plated
型号: KAPTON

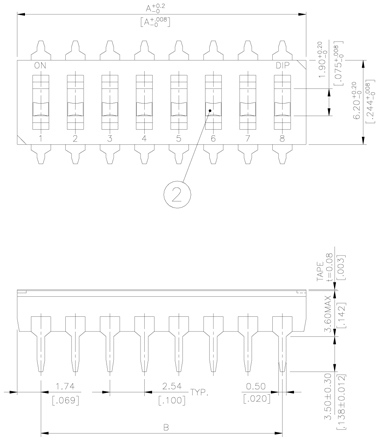

DM基本尺寸
DM尺寸
