PA系列

SPECIFICATION:

MAX. CURRENT/VOLTAGE RATING WITH RESISTIVE LOAD:

400mA 32VAC-100mA 50VDC-125mA 125VAC

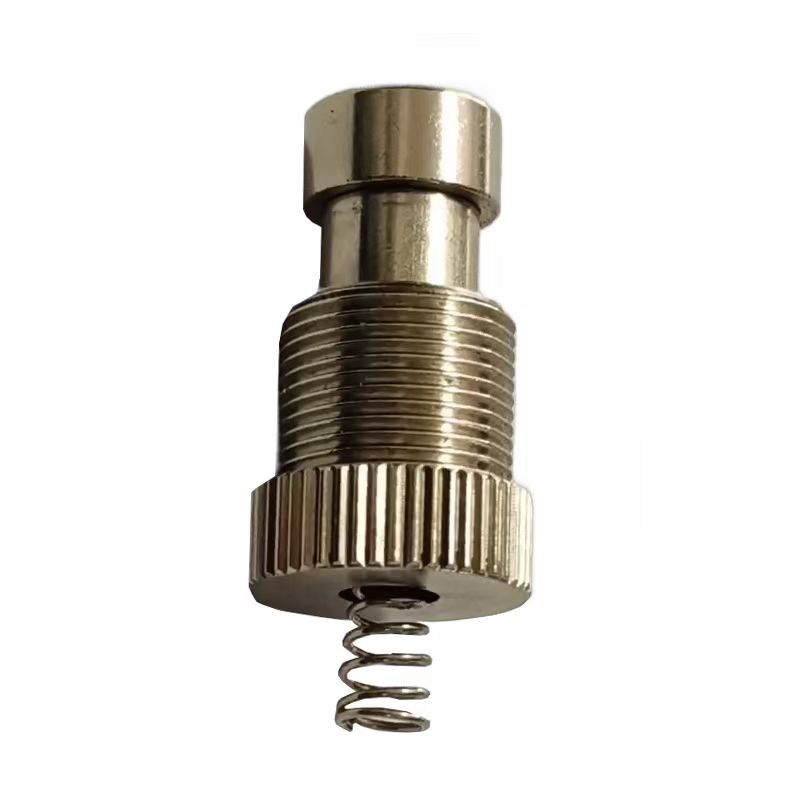

Metal bushing type:500mA48VAC-200 mA50VDC-200mA250VAC INITIAL CONTACT RESISTANCE:50mΩmax.(without wire leads)INSULATION RESIS TAN CE: 1G Ωmin.at 500VDC. DIELECTRIC STRENGTH:1,000VAC ms.(initial value)ELECTRICAL LIFE AT FULL LOAD:500,000 cycles. OPERATING TEMPERATURE:-30°C to 85°C. TOTAL TRAVEL: 1.5 mm(.059)OPERATING FORCE:2N~5N CONTACT BOUNCE:10 ms. MECHANICAL LIFE:1,000,000 cycles. TORQUE:0.5 Nm max.

SOLDERING:350℃max.for5seconds. MATERIALS

CASE:Diallyl phthalate(DAP)(UL94v-0).

CAP: Polyamide 6/6.

BUSHING: Polyamide 6/6.
