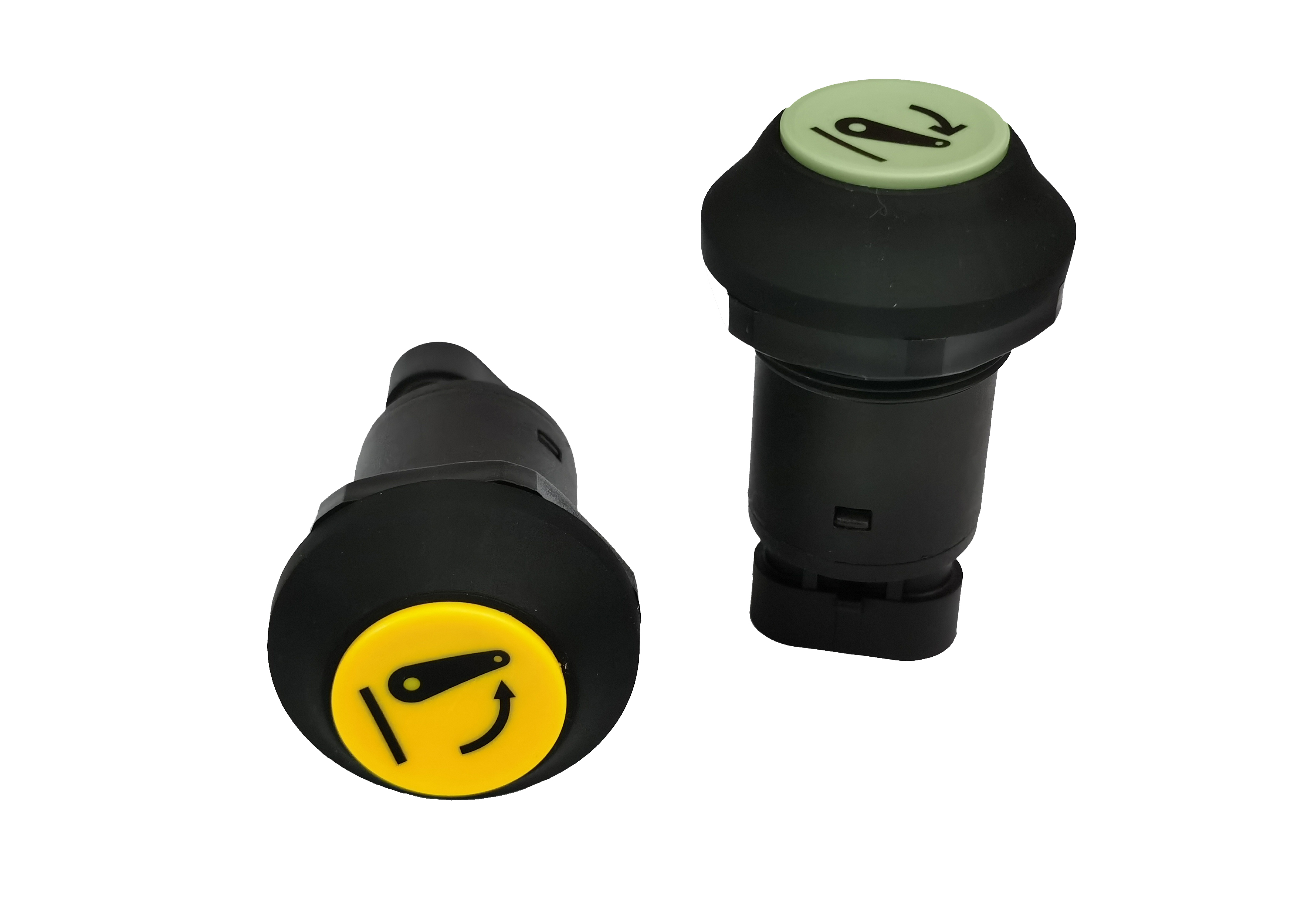

Pushbutton Switches_PY Series

Product type:Pushbutton Switches

SPECIFICATIONS
MECHANICAL LIFE: 100,000 make-and-break cycles.
ELECTRICAL LIFE: 50,000 cycles.
CONTACT RESISTANCE: 200 mΩmax. initial @ 2-4VDC 100mA
CONTACT RATING: 0.4Volt-Amps(VA) max.@20V max(AC or DC)
OPERATING POSITION: 0.65±0.2mm.
OPERATING FORCE: 630±130gf.
INSULATION RESISTANCE: 100 MΩmin.
DIELECTRIC STRENGTH: 1,000 V RMS@sea level.
OPERATING TEMPERATURE: -30°C to 85°C.
PANEL THICKNESS: 1.5 mm (.059) min. - 4 mm (.157) max.
TORQUE: 2.2 Nm max. applied to nut.

MATERIALS
HOUSING & BUSHING: Nylon 6/6.
BUTTON: Stainless steel.
ACTUATOR: Silicon.
CONTACT / TERMINALS: Copper alloy,with gold plated.
