General Specifications
Current Rating:50mA
Voltage Rating:12VDC
Dielectric Withstanding Voltage:250VAC for 1 minute
Contact Resistance:100m Ohm Max.(initial)
Insulation Resistance:100M Ohm Min.
Operating Force:230gf± 50gf(Tactile)/
60gf ± 20gf(Noiseless)/
190gf ± 50gf(Short Travel)
Total Travel(Tactile):0.3mm ± 0.1mm
Total Travel(Noiseless):1.0mm ± 0.3mm
Total Travel(Short Travel):0.2mm ± 0.1mm
Operating Life:1,000,000 cycles Min.
Solder Specifications:260 deg. for 3 seconds
Function:Momentary(SPST)
Operating Temperature:-10 deg.~+60 deg. PCB Mounting
Materials
Cap:Polycarbonate (PC)
Base:Polyamide (PA)
Reflector:Polycarbonate (PC)
Switch Terminal:Brass with gold plating
Action Dome:Phosphor Bronze with gold plating (Noiseless)
Phosphor Bronze with silver plating(Tactile&Short Travel)
Sealing rubber:Silicone
Feature

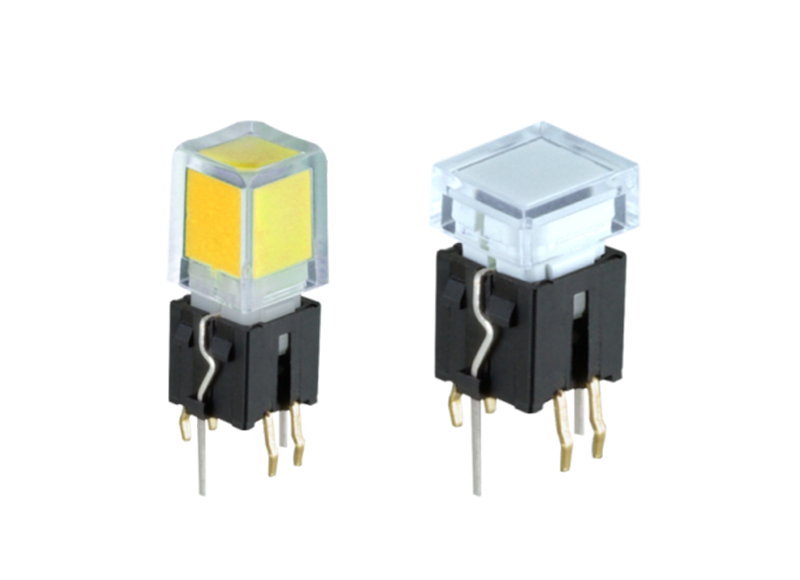

• 6*6 small size pushbutton switches body.
• Combination with various button style or color cap.
• LED illuminated machinery patent by SHANPU.
• TACTILE or SILENT are available.
• With silicon dust cover to keep contact point clean.
• Low contact resistance and long circuit life by
SHANPU design contact machinery.
• Collocation Cover and Laser engrave
add product value.
Application
Public building · Home Security · Business building ·
Industrial equipmene...etc.
