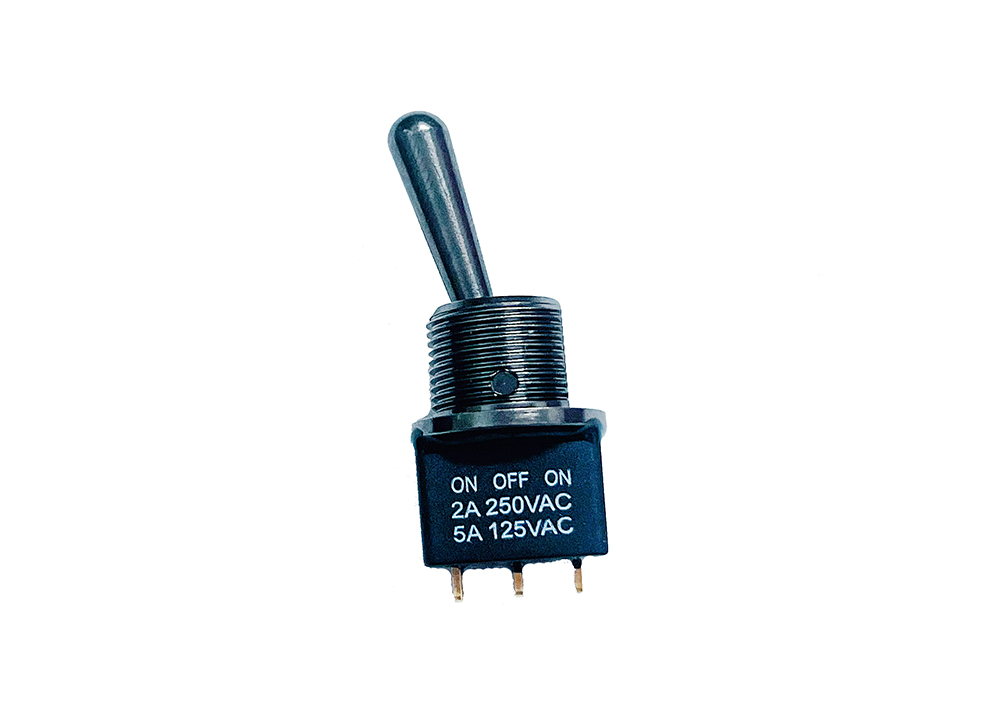

Waterproof Switch_2A Series

Size:8.13x5.08mm
Sealed Sub-Miniature Toggle Switches


SPECIFICATIONS
MECHANICAL LIFE: 30,000 make-and-break cycles
CONTACT RESISTANCE: 20mΩ max.initial @2-4V DC
100mA for both silver and gold plated contacts
INSULATION RESISTANCE: 1,000MΩ min
DIELETRIC STRENGTH: 1,000 V RMS @sea level
OPERATING TEMPERATURE: -30℃ to +85℃

MATERIALS
CASE & BUSHING: Glass filled nylon66, flame retardant, heat stabilized (UL94V-0)
ACTUATOR: Brass, chrome plated with internal O-ring seal, standard for all actuators
SWITCH SUPPORT: Brass, tin plated
CONTACTS/TERMINALS: Copper alloy, with silver or gold plated
