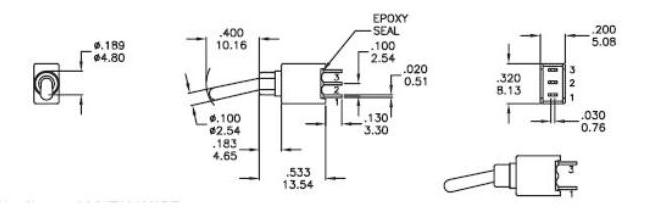

Toggle Switch-2A Series

SPECIFICATIONS

CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 30,000 make – and – break cycles.
CONTACT RESISTANCE: 20mΩ max.Initial @ 2-4VDC,100 mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1,000MΩmin .
DIELECTRIC STRENGTH: 1,000Vrms min@sea level.
OPERATING TEMPERATURE: -30℃ to 85℃.

MATERIALS
CASE & BUSHING: Glass filled nylon 66, flame retardant,heat stabilized(UL94V-0).
ACTUATOR: Brass,chrome plated, internal O-ring seal. Standard of all actuators.
SWITCH SUPPORT: Brass ,tin plated.
CONTACTS/TERMINALS: Copper alloy with Silver or gold plated
