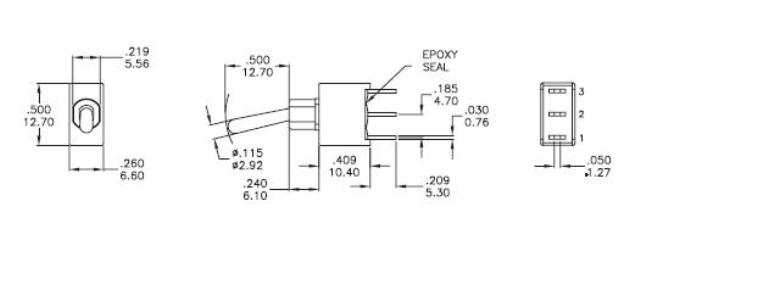

toggle switch-1A Series



Rating: 120VAC 5A/250VAC 2A
Sealed Toggle Switchs







SPECIFICATIONS





CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 30,000 make – and – break cycles.
CONTACT RESISTANCE: 10 mΩ max.initial @ 2-4VDC 100mA for both sliver and gold plated contacts.
INSULATION RESISTANCE: 1,000MΩMIN.
DIELECTRIC STRENGTH: 1,000Vrms min@sea level.
OPERATING TEMPERATURE: -30℃ to 85℃.

MATERIALS
CASE:Glass filled nylon 6/6, flame retardant,heat stabilized (UL94V-0).
ACTUATOR: Brass,chrome plated with internal, O-ring seal atandard.
SWITCH SUPPORT: Brass or steel, tin plated.
SWITCH SUPPORT RETAINER: Stainless Steel.
CONTACTS/TERMINALS: copper alloy ,with silver or gold plated.
